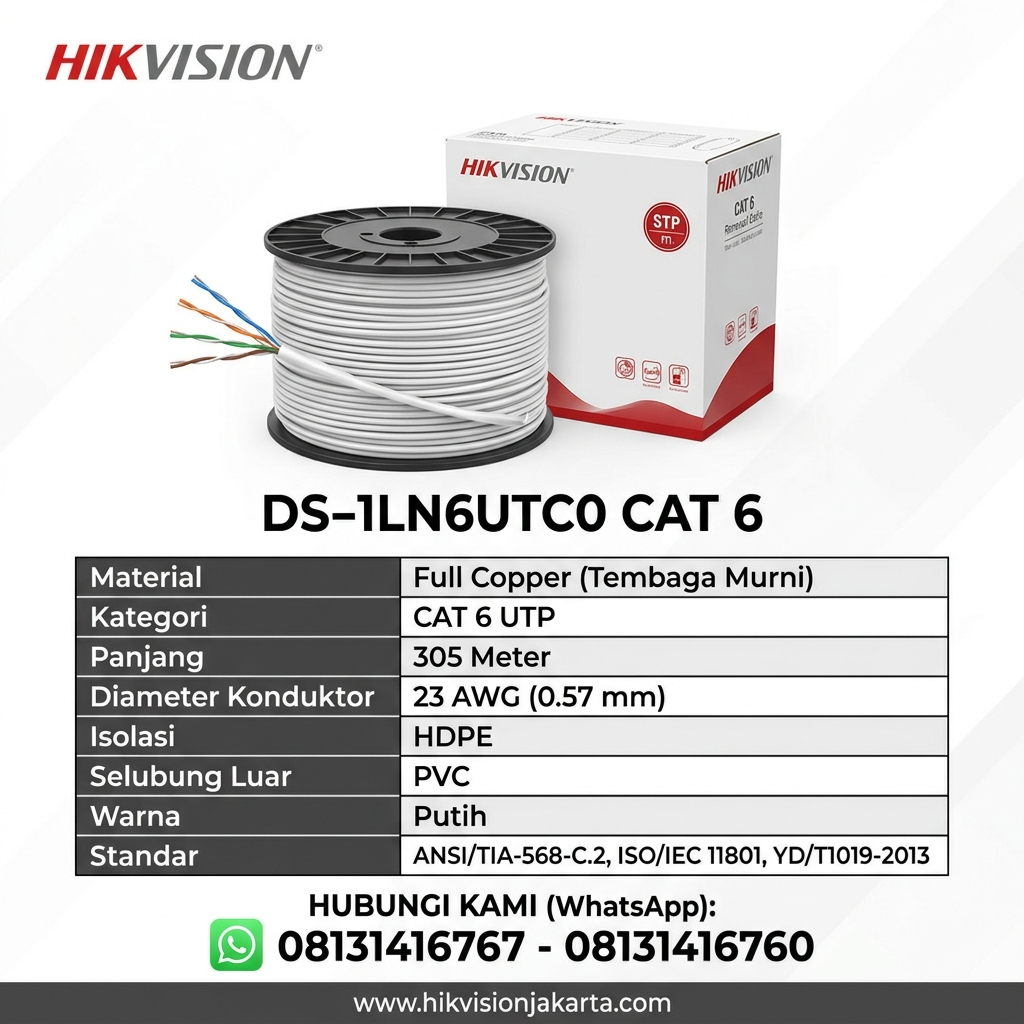

DS-1LN6UTC0 CAT 6

Specification
Model DS-1LN6U-SC0
Category Cat.6
Sheath printing HIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy
Tracing Code-HS
Reference
standard ISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0
Fire resistance No
Conductor
Material Solid-Bare Copper (99.95%)
Diameter 0.55 ± 0.005 mm, 23 AWG
Insulation
Material HDPE
Diameter 0.98 ± 0.05 mm
Sheath
Thickness 0.50 ± 0.10 mm
Diameter 6.00 ± 0.30 mm
Material PVC
Color Orange
Rip-cord Yes
Separator Yes
Sheath physical
properties
Before aging
Tensile strength ≥ 13.5 Mpa
Elongation ≥ 150%
Aging period 100°C × 24h × 10d
After aging
Tensile strength ≥ 12.5 Mpa
Elongation ≥ 125%
Cold bend -20 ± 2°C × 4h, 8 × cable O.D, no visible cracks
Electrical
Characteristics
(20°C)
1.0-250.0 MHz impedance
100 ± 15 Ω @ ≤ 100 MHz
100 ± 25 Ω @100-250 MHz
1.0-250.0 MHz delay skew ≤ 45 ns/100 m
DC resistance ≤ 9.38 Ω/100 m
DC conductor resistance
unbalance ≤ 5.0%
Package dimension 400 mm (W) × 400 mm (H) × 240 mm (D) (15.75″ × 15.75″ × 9.45″)
Weight 12.3 ± 0.5kg
Cable length (305 ± 1.5) m
Ambient temperature -20°C to 75°C (-4°F to 167°F)
Operating voltage 60 V
Technical Performance (100 m)
